Elliptical double guide chain round linear guide
Email:
tanhaofeng09@gmail.com
Still deciding? Get samples first, Contact US !
View similar products
Chain ring guide rails
Tag list
Description
Load: High
Shape: Oval
Transmission method: chain
Positioning accuracy: ±0.05mm

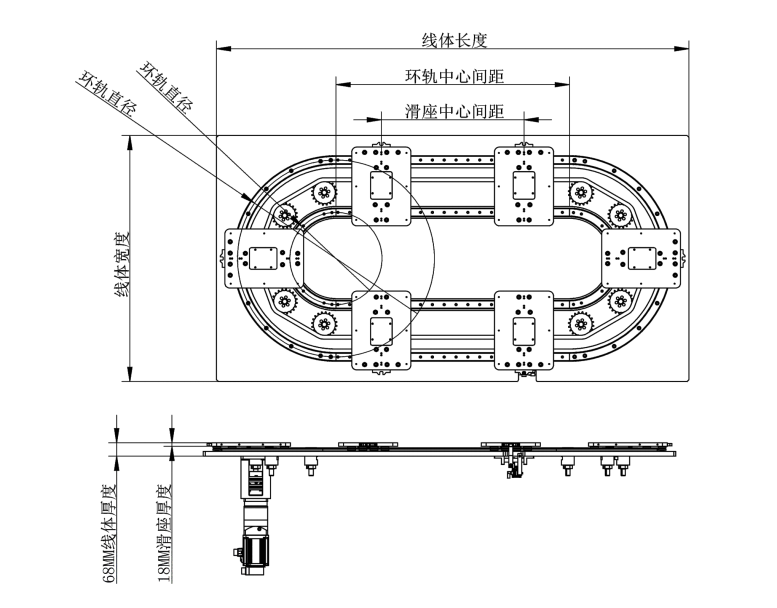

Structural analysis
Elliptical track design: The elliptical track can achieve variable speed movement and precise stop of materials in different arc sections by reasonably setting the matching parameters of the drive mechanism and the track, thus improving the flexibility and adaptability of production.
Double guide rail system: Equipped with two parallel guide rails, this double guide rail structure significantly enhances the stability and load-bearing capacity of the conveyor line. It can also ensure the accuracy and reliability of transportation.
Chain transmission mechanism: The chain is used as the main power transmission element. The chain surrounds the elliptical double guide rail and meshes with the drive sprocket.
Application scenarios:
1. Automobile manufacturing industry
Application process:
a: Automobile parts assembly, such as automobile battery assembly
b: Automobile parts manufacturing, such as automobile brake disc processing
c: Automobile lamp detection, such as automobile headlight detection
2. Injection molding industry transportation
Application process:
a: Injection molding parts transportation, such as surprise egg packaging
b: Injection molding toy manufacturing, such as automobile model conveying processing
c: Injection molding toy detection, such as building block matching detection
