Circular guide rail conveyor line
Description
Load: High
Shape: Rectangle
Transmission method: chain
Positioning accuracy: ±0.05mm

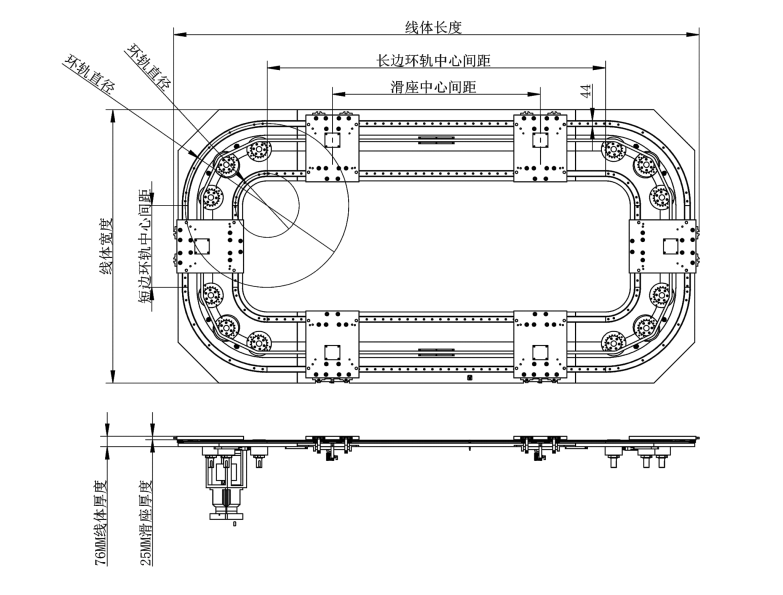

Structural analysis
Elliptical track design: The elliptical track can achieve variable speed movement and precise stop of materials in different arc sections by reasonably setting the matching parameters of the drive mechanism and the track, thus improving the flexibility and adaptability of production.
Double guide rail system: Equipped with two parallel guide rails, this double guide rail structure significantly enhances the stability and load-bearing capacity of the conveyor line. It can also ensure the accuracy and reliability of transportation.
Chain transmission mechanism: The chain is used as the main power transmission element. The chain surrounds the elliptical double guide rail and meshes with the drive sprocket.
Application scenarios:
1. Automobile manufacturing industry
Application process:
a: Automobile parts assembly, such as automobile battery assembly
b: Automobile parts manufacturing, such as automobile brake disc processing
c: Automobile lamp detection, such as automobile headlight detection
2. Injection molding industry transportation
Application process:
a: Injection molding parts transportation, such as surprise egg packaging
b: Injection molding toy manufacturing, such as automobile model conveying processing
c: Injection molding toy detection, such as building block matching detection
3. Medicine and medical treatment
Application process:
a: Filling, packaging, and testing of medicines
b: Assembly and debugging of medical devices
Rectangular double guide rail Circular guide rail conveyor line
